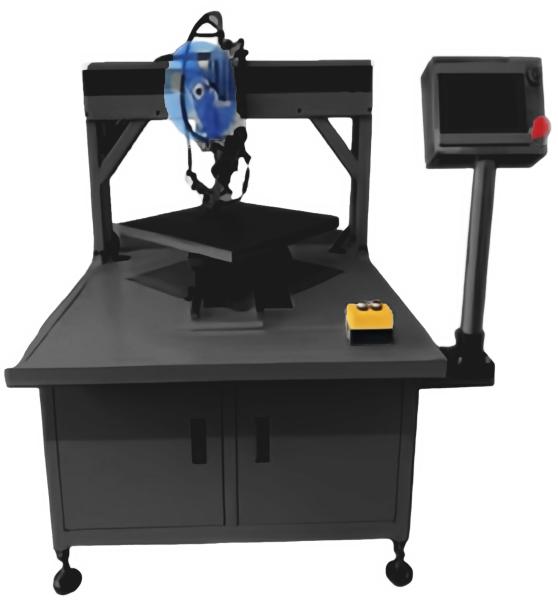

Flexible Double Sided Tape Pasting Machine 1.2KW Multi Angle Tape Applicator Machine

Brand Name : FINTEECH

Model Number : GPC-T55/T70 GPC-H1108/H2015

Certification : CE

Place of Origin : CHINA

MOQ : 1set

Packaging Details : wooden case

Delivery Time : 20-30 days

Payment Terms : TT/LC

Supply Ability : 10 sets per day

Max Tape Width : 50mm

Color : Silver

Speed : 10-30m/min

Material : Stainless Steel

Frequency : 50Hz

Weight : 20kg

Max Tape Length : 100m

Dimensions : 500mm x 300mm x 400mm

Voltage : 220V

Contact Now

Multi-Angle Double-Sided Adhesive Tape Pasting Machine GPC Series
Key Features
  • Ideal for short-run products requiring double-sided tape application
  • Flexible setup to meet different production needs
  • Enables quick double-sided tape changes
  • Provides higher precision in adhesive application with easy size and angle adjustment
  • Simple operation and parameter adjustments
  • Vacuum pump system securely fixes materials in place
Technical Specifications
Compact Models
Model GPC-T55 GPC-T70
Effective working size 550 * 550mm 700 * 700mm
Overall dimensions 1110 * 1550 * 1400mm 1400 * 1700 * 1400mm
Weight 200kg 260kg
Power 1.2KW, 220V, 50/60HZ
Thickness of tape 0.05-2mm
Width of tape 1.5-50mm
Working speed 600mm/s
Overlap precision ±1mm
Product fix method Vacuum
Note: The table can be rotated 360° to accommodate multi-angle gluing applications.
Large Format Models
Model GPC-H1108 GPC-H2015
Effective working size 1100 * 800mm 2000 * 1500mm
Overall dimensions 1900 * 1300 * 1800mm 2900 * 2300 * 1800mm
Weight 700kg 1300kg
Power 3KW, 220V, 50/60HZ
Thickness of tape 0.05-2mm
Width of tape 1.5-50mm
Working speed 600mm/s
Overlap precision ±1mm
Product fix method Vacuum
Note: The head can be rotated 360° to accommodate multi-angle gluing applications.
