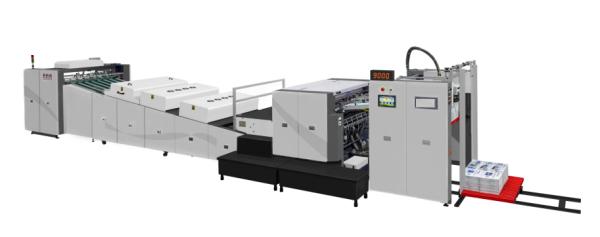

730mm*1060mm Auto Print UV Machine 44K With LED Light And Conveying Unit

Brand Name : FINTEECH

Model Number : FDW-1060W

Certification : CE

Place of Origin : CHINA

MOQ : 1set

Packaging Details : wooden case

Delivery Time : 20-30 days

Payment Terms : TT/LC

Supply Ability : 10 sets per day

Color : slightly yellow powder,Light yellow,Transparent

Sample : available

Keywords : Octabenzone,UV & EB curable systems,UV light stabilizer

Light Source : LED

Shape : Round/Square/Rectangle

Features : Portable/Rechargeable

Power Source : Battery

Contact Now

Machine Details
1. Automatic Feeder:

High speed feeder with four sucking and four forwarding suckers can feed sheet smoothly.

2. Sheet Transferring Unit:

Upper swing sheet transferring method can transfer sheet smoothly at high speed to pressure cylinder exactly.

3. Varnish Supply:

Steel roller and rubber roller with metering roller reversing and doctor blade design control varnish consumption and volume to meet the demand of products and operate easily (Varnish consumption and volume are determined by LPI of ceramic anilox roller)

4. Transferring Unit:

After sheet is transferred from pressure cylinder to gripper, air volume blowing for paper can support and reverse sheet smoothly, which can prevent sheet surface from being scratched.

5. Conveying Unit:

Upper and lower conveying belt can form thin sheet to be curved for smoothly delivery.

6. Sheet Delivery:

Automatic pneumatic patting sheet controlled by photo electric detecting sensor make sheet pile fall automatically and collect sheet neatly. Electronic control can take out sheet sample safely and quickly for inspecting.

PRODUCT SPECIFICATION
MODEL FDW-1060W
Max. Sheet Size 730mm*1060mm
Min. Sheet Size 310mm*406mm
Max. Coating Area 720mm*1050mm
Sheet Thickness 80-500gsm
Max. Coating Speed Up to 9000sheets/hour (Depending on sheet weight, size and quality)
Power Required 44Kw (solvent base)/40Kw (water base)
Dimension (L*W*H) 11960mm*2725mm*1976mm
Weight 8000Kgs
